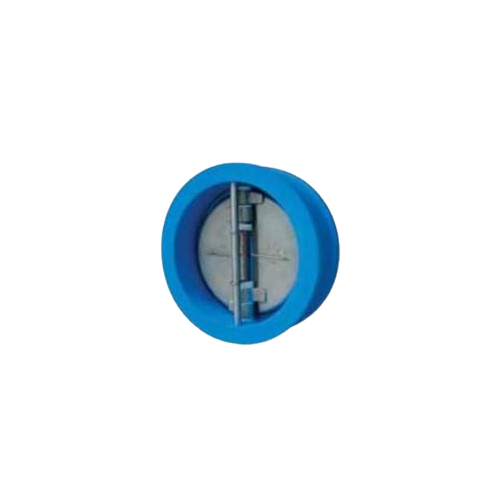

CAST IRON DUAL DOOR CHECK VALVE (CDCV-W)

Specification

Suitable PN/10/16, JIS10K & ANSI150 Flange Mounting Face-to-Face
Dimension to EN 558-1 SR. 16

For a comprehensive overview of the product specifications mentioned above,
feel free to download the product catalog here.

Part	Material	DIN / EN
Body	Cast Iron Ductile Iron	1691 GG25 1691 GGG50
Disc	Ductile Iron Aluminium Bronze Stainless Steel 304 Stainless Steel 316	1691 GGG50 EN1982 CC491K SUS 304 SUS 316
Seat Ring	EPDM NBR
Shaft	Stainless Steel 316	SUS 316
Taper Pins	Stainless Steel 316	SUS 316
SUS 316	TEFLON

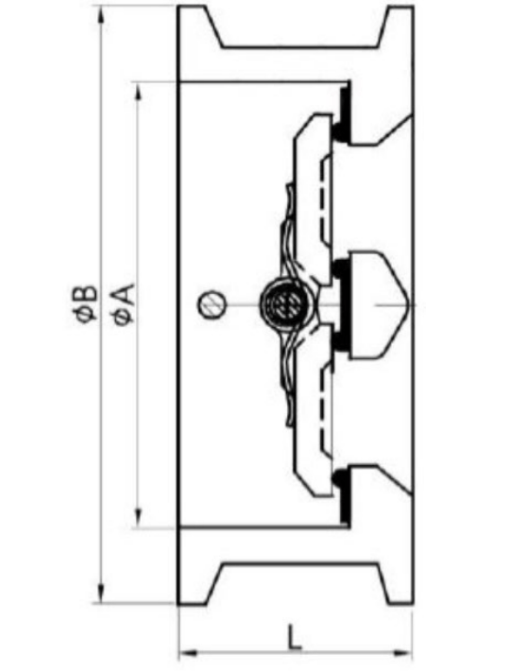

Structure Image

Size mm	L mm	A mm	B mm
50	43	65	101
65	46	80	121
80	64	94	131
100	64	117	156
125	70	145	187
150	76	170	217
200	89	224	267
250	114	265	329
300	114	310	375
350	127	360	420
400	140	410	483
450	152	450	538
500	152	505	593
600	178	624	697
