CGV

CAST IRON GATE VALVE (CGV-J)

Specification

  • NON-RISING STEM
  • INSIDE SCREW
  • FLANGED TO JIS B2212
  • FACE-TO-FACE DIMENSION ACCORDING TO JIS B2002

Download

For a comprehensive overview of the product specifications mentioned above, feel free to download the product catalog  here.

Category:

Material

PartMaterialBS
BodyDuctile IronFCD 450
BonnetDuctile IronFCD 450
DiscDuctile IronFCD 450
Seat RingBrassC3771BD
StemStainless SteelSS410
PackingGraphiteNon-Asbestos
HandwheelDuctile IronFCD 450

Pressure / Temperature Rating



Working Pressure10 bar
Testing Pressure Shell: 1.5 times
Seat: 1.1 times
Working Temperature-10°C ~ 80°C
Suitable MediaWater & Oil

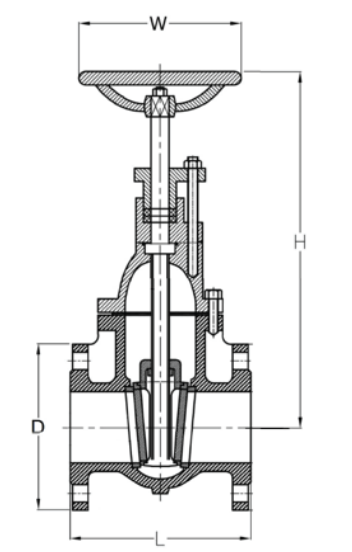

Size mmL mmH mmD mmW mm
40165215140150
50180254155150
65190273175150
80200315185210
100229375210210
125250423250250
150270494280250
200290603330300
250330652400320
300350722445350
