EOT Series Compact Quarter-turn Electric Actuator

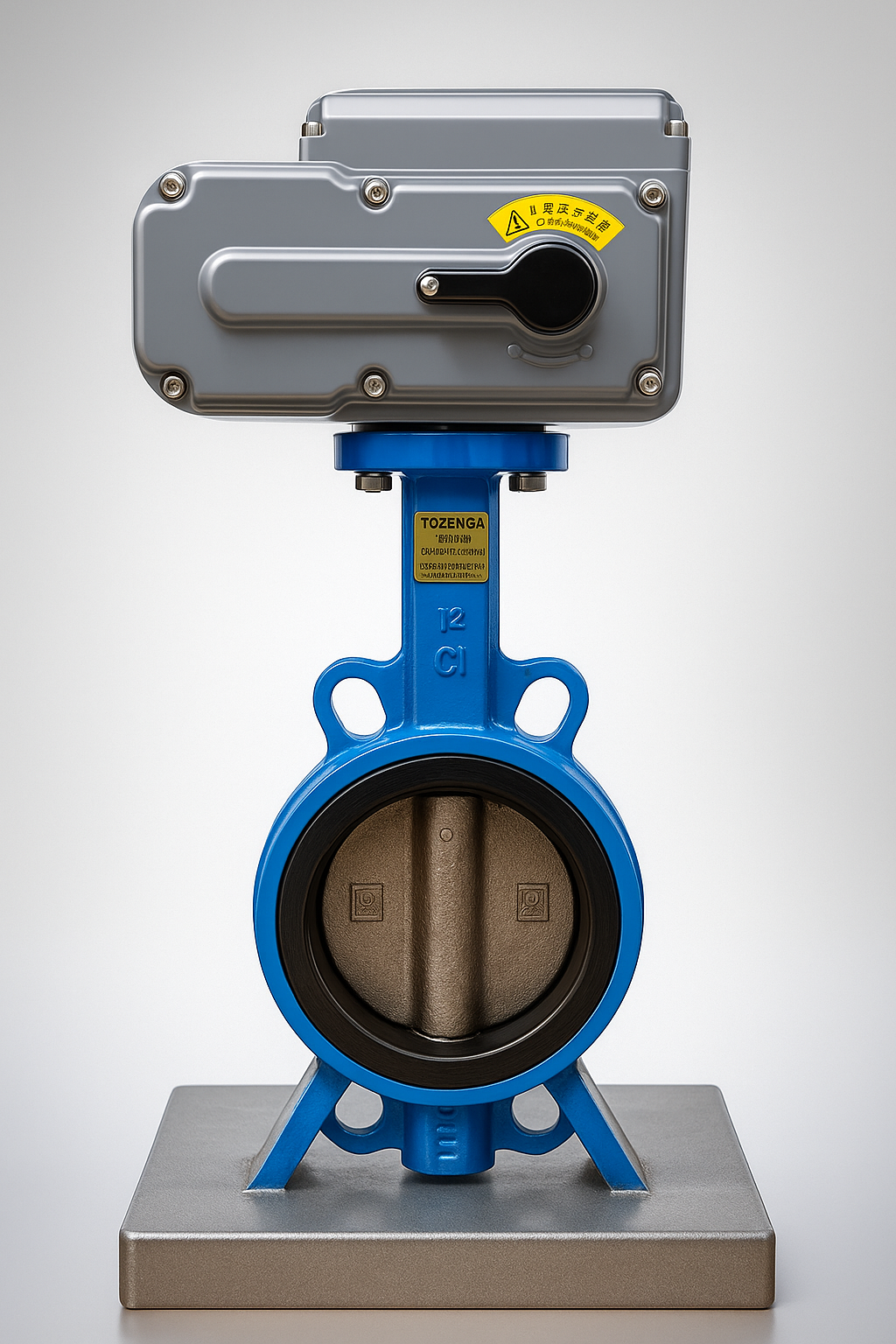

Product Introduction

EOT series compact quarter-turn electric actuator is the motor through the rotary force of multi-stage reduction gear, worm gear and other mechanisms, and finally through the output shaft, in the form of rotation 90° to switch the valve device, mainly to drive and
control the valve opening, such as butterfly valve, ball valve, plug valve and other similar valve application. The output torque range is 50~6000 N·m, and the control mode is mainly divided into two types: on/off type and modulating type.

The product housing uses die-cast aluminum alloy, multistage reduction gear, copper alloy worm wheel and high strength alloy worm transmission structure. Actuator output clearance is small, stroke repetition deviation within ±1°, high control accuracy, for buildings and civil construction and other industries to provide quality solutions.

Category:

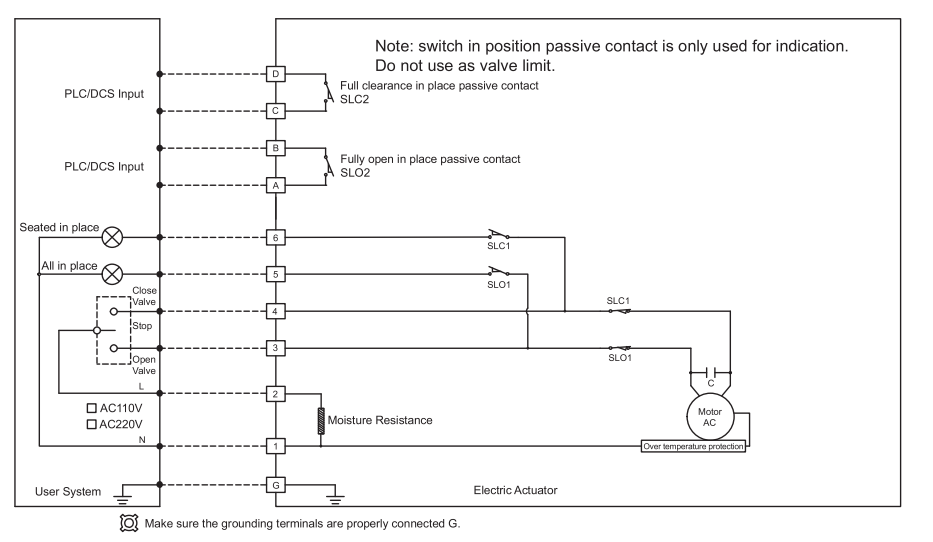

Structure

Mode 220V Power (W) Max output Torque (N.m) Operating time (Sec) 50Hz ISO5211 Stem connection dimensions (mm) Stem height (mm) Weight (kg) Remark
AC110V AC220V DC24V AC380V 3 Phase AC110V AC220V 50Hz AC380V DC 24V
EOT05 6 50 — 19 — 15 F03/F05/F07 □9
□11
□14 Octagon		 ≤20 2 8# Wrench operation
EOT10 25 100 — 30 23 — F05/F07 □11
□14
□17 Octagon		 ≤32 4.5
EOT20 40 200 — 30 23 —   □14
□17
□22 Octagon		 ≤44 10 6mm Allen manual wrench operation
EOT40 60 400 — 30 23 — F07/F10 □27 Octagon ≤44 10 6mm Allen manual wrench operation
EOT60 90 600 — 30 15 —   □27 Octagon ≤30 26 customizable: ≤55
EOT100 120 1000 — 30 23 — F10/F12 F14/F16 □22
□27
□36 Octagon		 ≤30 26 customizable: ≤55
EOT160 150 1600 — 42 32 —   □27
□36 Octagon		 ≤55 28
EOT250 200 2500 — 70 33 — F14 F16 □27
□36 Octagon		 ≤55 28
EOT400 200 4000 — 93 - - F16 □46 Octagon ≤85 68
EOT600 200 6000 — 153 - - F16 □55 Octagon ≤85 80
