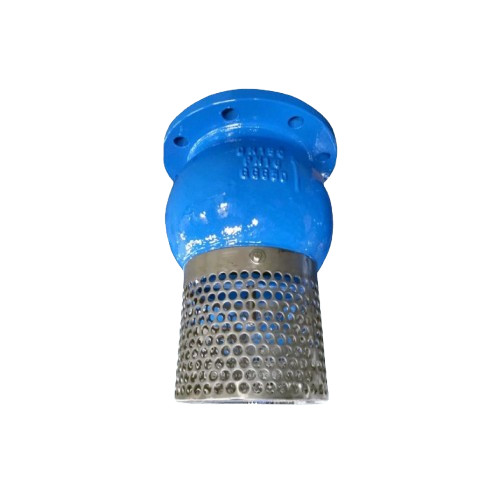

FOOT VALVE (DFV)

Specification

FLANGED TO BS EN 1092-2 PN16

  • Note:
  • 1. Other flange standards available upon request.
  • 2. Design and specifications are subject to change without prior notice.

Download

For a comprehensive overview of the product specifications mentioned above, feel free to download the product catalog here.



Category:

Materials

PartMaterial
BodyDuctile Iron
DiscDuctile Iron
Seat RingEPDM/NBR
StemStainless Steel 410
SpringStainless Steel 304
ScreenStainless Steel 304

Pressure/Temperature Ratings

Working Pressure16 bar
Testing PressureShell: 1.5 times
Seat: 1.1 times
Working
Temperature		-10°C to 120°C (EPDM Seat)
-10°C to 80°C (NBR Seat)
Suitable MediaWater & Oil

Structure

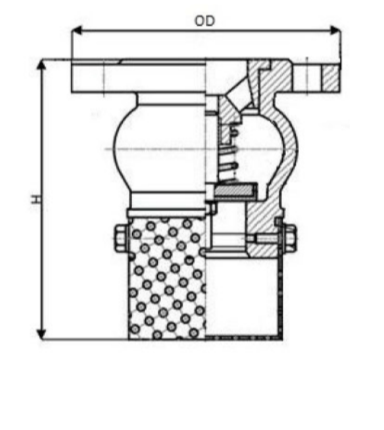

Structure Image

Dimensions

Size
mm		H
mm		OD
mm
50166165
65201185
80221200
100265220
125300250
150360285
200470340
250568405
300653460
350670520
400720580
