IRON SWING CHECK VALVE (CCV-J)

Specification

BRASS SEAT
FLANGED TO JIS B2212
FACE-TO-FACE DIMENSION ACCORDING TO JIS B2002

Download

For a comprehensive overview of the product specifications mentioned above, feel free to download the product catalog here.

Category: Valves (Cast & Ductile Iron) Tags: Brass, Cast Iron, CCV-J, CHECK, Ductile Iron, iron, JIS B2002, JIS B2212, SWING, VALVE

Specification

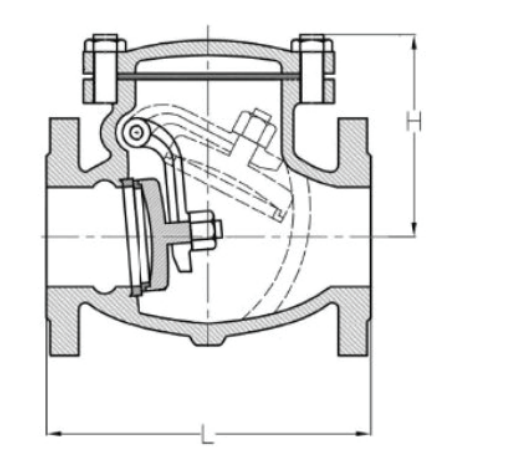

Drawing

Material

Part	Material	BS
Body	Cast Iron (DN40-DN150) Ductile Iron (DN200-DN300)	FC 200 FCD 450
Disc	Ductile Iron with B62/SS304	FCD 450 + B62/SS304
Cover	Cast Iron	FC 200
Seat Ring	Brass	C3771BD

Pressure / Temperature Ratings

Working Pressure	10 bar
Testing Pressure	Shell: 15 bar Seat: 11 bar
Working Temperature	-10°C to 120°C
Suitable Media	Water & Oil

Dimensions

Size mm	L mm	H mm
40	165	110
50	203	127
65	216	151
80	241	165
100	292	178
125	330	205
150	356	221
200	495	249
250	622	306
300	698	405
