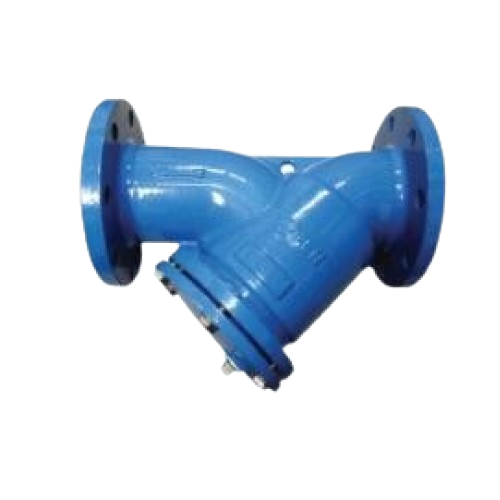

IRON Y-STRAINER (CYS-J)

Specification

BOLTED COVER WITH BLOW-OFF DRAIN PLUG
STAINLESS STEEL PERFORATED SCREEN
FACE-TO-FACE DIMENSION ACCORDING TO JIS10K
FLANGED END DRILLED TO JIS B2212

Download

For a comprehensive overview of the product specifications mentioned above, feel free to download the product catalog here.

Category: Valves (Cast & Ductile Iron) Tags: Carbon Steel, cys-j, iron, PERFORATED SCREEN, STAINLESS STEEL, Water & Oil, y-strainer

Specification

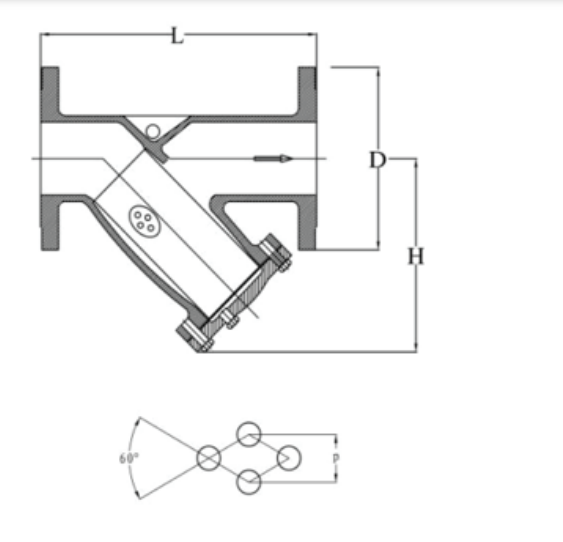

Drawing

Material

Part	Material	JIS
Body	Cast Iron (DN50~150) Ductile Iron (DN200~300)	FC 200 FCD 450
Cover	Cast Iron (DN50~150) Ductile Iron (DN200~300)	FC 200 FCD 450
Screen	Stainless Steel	SS304
Blow-Off Plug	Carbon Steel
Gasket	EPDM

Pressure / Temperature Ratings

Working Pressure	10 bar
Testing Pressure	15 bar
Working Temperature	-10°C to 120°C
Suitable Media	Water & Oil

Standard Screens

Size (mm)	Hole Dia. (mm)	P (mm)
50 ~ 100	2.0	4
200 ~ 300	3.0	4

Dimensions

Size mm	L mm	H mm	D mm
50	250	143	155
65	285	162	175
80	315	175	185
100	370	220	210
125	420	250	250
150	490	290	280
200	570	385	330
250	680	438	400
300	800	512	445
