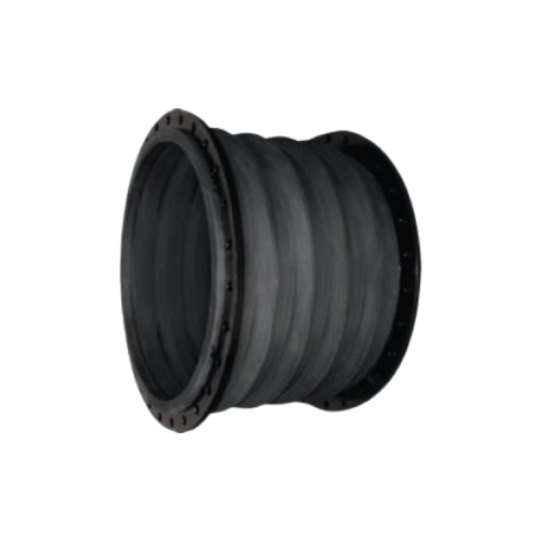

LS CONNECTOR

Feature

  • Absorb large movement with small overall length
  • Provide max. working pressure 2.94 MPa (30 kgf/cm2)
  • Great recovery from movement
  • Excellent corrosion resistance
  • Various connections are provided by materials and angular
    movement independently or simultaneously connection
  • Vibration and sound absorption
  • Custom made to make connectors to meet site requirements
  • Neither packing nor gasket required
  • Large movement of axial compression, elongation, lateral and angular movement independently or simultaneously

Download

For a comprehensive overview of the product specifications mentioned above, feel free to download the product catalog here.

Application

  • Water supply services
  • Water treatment plant
  • Chemical processing plant
  • Sewerage treatment plant
  • And many other aboveground or buried pipe line
  • Air purification systems
  • Electrical generating stations
  • Drainage systems
  • HVAC systems
  • Marine services
Category: Tags: , , ,

Dimensions and Allowable Movements

Nominal Dia.
mm		 Standard Pressure Rating
(Kgf/cm²)		 20mm Lateral Movement
1 Bellow (mm)		 50mm Lateral Movement
2 Bellow (mm)		 100mm Lateral Movement
3 Bellow (mm)		 200mm Lateral Movement
4 Bellow (mm)
L Elon. Comp. L Elon. Comp. L Elon. Comp. L Elon. Comp.
20 10 150 15 20 250 30 45 350 40 60 450 40 60
25 10 150 15 20 250 30 45 350 40 60 450 40 60
32 10 150 15 20 250 30 45 350 40 60 450 40 60
40 10 150 15 20 250 30 45 350 40 60 450 40 60
50 10 150 15 20 250 30 45 350 40 60 450 40 60
65 10 150 15 20 250 30 45 350 40 60 450 40 60
80 10 150 20 20 300 30 45 500 40 60 600 40 60
100 10 150 20 20 300 30 45 500 40 60 600 40 60
125 8 150 20 20 300 30 45 500 40 60 600 40 60
150 8 200 20 20 300 30 45 500 40 60 600 40 60
200 8 200 20 20 300 30 45 500 40 60 600 40 60
250 8 200 20 20 300 30 45 500 40 60 600 40 60
300 8 200 20 20 300 30 45 550 40 60 650 40 60
350 5 200 25 30 350 40 50 550 50 70 650 50 70
400 5 200 25 30 350 40 50 550 50 70 650 50 70
450 5 200 25 30 350 40 50 550 50 70 650 50 70
500 5 250 25 30 400 40 50 650 50 70 750 50 70
600 5 250 25 30 400 40 50 650 50 70 750 50 70
700 5 250 25 30 400 40 50 650 50 70 750 50 70
800 5 300 25 30 450 50 50 700 50 70 800 50 70
900 5 300 25 30 450 50 50 700 50 70 800 50 70
1000 4 300 25 30 450 50 50 700 50 70 800 50 70
1100 3 300 25 30 450 50 50 750 50 70 800 50 70
1200 3 300 25 30 450 50 50 750 50 70 800 50 70
1350 3 300 25 30 450 50 50 800 50 70 950 50 70
1500 3 350 25 30 450 50 50 800 50 70 950 50 70

* L: Overall Length           Elon. : Elongation           Comp. : Compression

Note:
1. Mass indicates the weight for underground type.
2. Please use each movement within allowable movements.
3. Information in the above table is for single movement only.

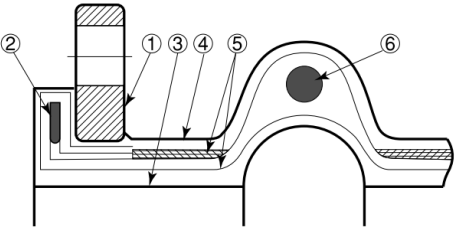

No Parts Material
1 Flange Mild Steel
2 End Reinforcing Ring
3 Inner Rubber End Reinforcing Ring
4 Outer Rubber Neoprene
5 Reinforcing Fabric & Reinforcing Wire Synthetic Fiber
6 Arch Reinforcing Ring
