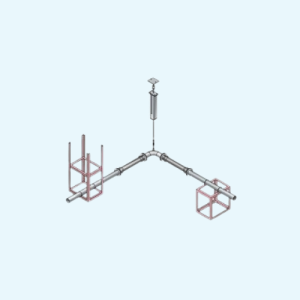

SEQULEX2 C system
All-round seismic isolation system applicable to various types of piping, due to its wide setting range for received load. Proper seismic isolation joints with appropriate properties should be selected for placement depending on the diameter and type of fluid of the piping. C system, for which this property can be set broadly and at random, is suitable for this purpose.
Application
Seismic isolation for foundation and quake-absorbing floors
Operating Condition
1. Rubber
Maximum working pressure: 1.0MPa
Operating temperature: 60 °C – 70 °C
2. Metal
Maximum working pressure: 1.4 – 2.8MPa
Operating temperature: 150 °C and less
3. PTFE resin
Maximum working pressure: 0.6 – 1.0MPa
Operating temperature: 100 °C and less
Applicable line
1. Rubber
Water supply, sewage, waste water, rainwater, ventilation, cold & warm water, warm water, cold water, etc.
2. Metal
10K：Fire water, water supply, cold and warm water, cold water, etc.
3. PTFE Resin
Hot water, high-temperature water, liquid medicine, etc.
4. Metal
20K：Fire water, water supply, oil, steam, cold and warm water, warm water, cold water, etc.
Nominal Diameter
20A – 300A
Features
Horizontal elastic function (long-span period)
Space saving (cost reduction)
Caster function
