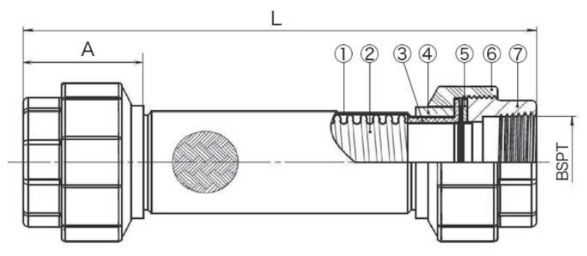

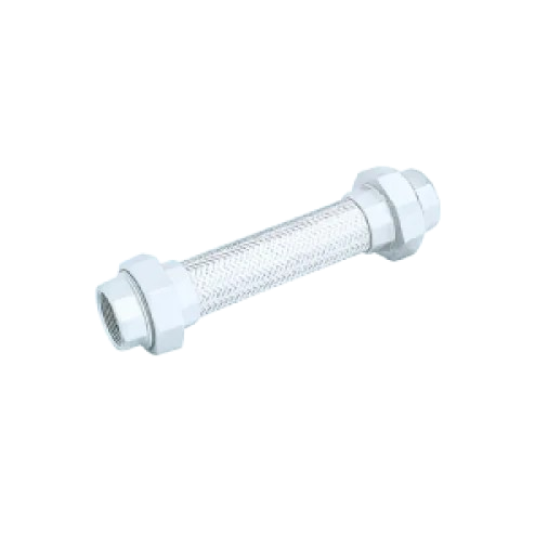

Both ends union female threas to BSPT
Material FCMB
Non-weld structure enhance the reliabilitu and durability of the joint
Easy piping work and low cost.
For a comprehensive overview of the product specifications mentioned above, feel free to download the product catalog.
| Nominal Diameter (mm) | Thread Rc (inch) | Min. Bending Radius (mm) | 300mm | 400mm | 500mm | Ineffective Length (Ax2) (mm) |
|---|---|---|---|---|---|---|
| 15 | 1/2 | 165 | 45 | 92 | 151 | 85 |
| 20 | 3/4 | 225 | 32 | 68 | 115 | 90 |
| 25 | 1 | 260 | 23 | 52 | 92 | 110 |
| 32 | 1.1/4 | 300 | 20 | 46 | 81 | 110 |
| 40 | 1.1/2 | 340 | 17 | 39 | 70 | 115 |
| 50 | 2 | 390 | 15 | 34 | 62 | 115 |
 |
|
Metal flexible hoses should not be bent to radius smaller then recommended in their specification, otherwise fatique and premature.
