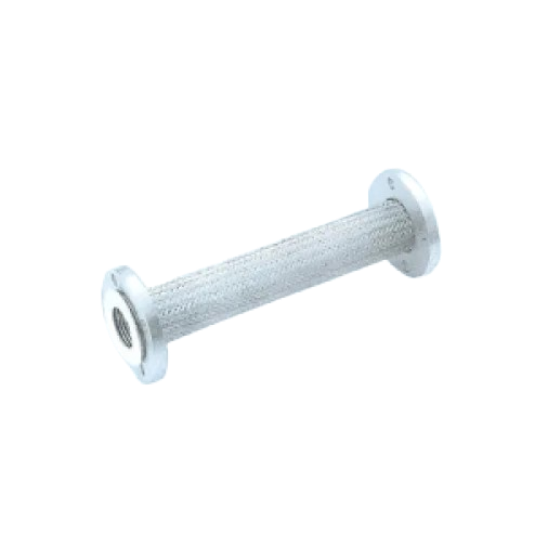

Both ends loose flange. All contacting fluid parts are stainless steel. Longer effective length enable higher lateral movement.
For a comprehensive overview of the product specifications mentioned above, feel free to download the product catalog.
| Type | Size | Min Bending Radius (mm) | Lateral Movement | Ineffective Length (mm) | |
|---|---|---|---|---|---|
| 300mm OAL | 500mm OAL | ||||

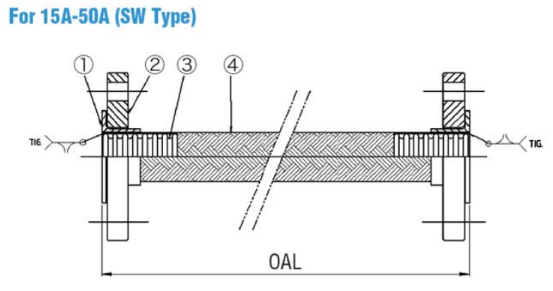

| SW | 15 | 165 | 66 | 183 | 36 |
| 20 | 225 | 50 | 144 | 36 | |
| 25 | 260 | 43 | 128 | 36 | |
| 32 | 300 | 37 | 111 | 40 | |
| 40 | 340 | 32 | 98 | 43 | |
| 50 | 390 | 28 | 86 | 43 | |

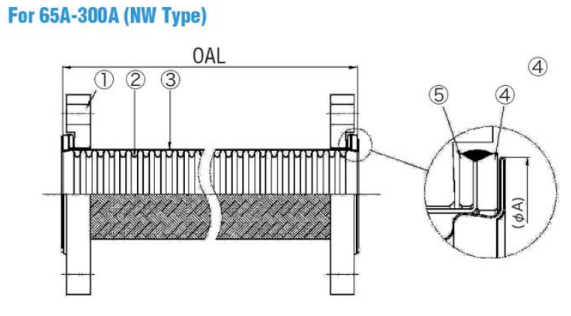

| NW | 65 | 460 | 21 | 70 | 56 |
| 80 | 660 | 15 | 49 | 59 | |
| 100 | 750 | 13 | 43 | 59 | |
| 125 | 1000 | 9 | 32 | 62 | |
| 150 | 1250 | 7 | 24 | 73 | |
| 200 | 1600 | 5 | 18 | 80 | |
| 250 | 2000 | 4 | 14 | 84 | |
| 300 | 2400 | 3 | 12 | 90 | |
 |
| ||||||||||||||||||
 |
|
* Max working temperature: 250°C
* Other material: SUS 316L may be available upon request
Note:
1. Other specifications are also available, please consult with us.
2. Design and specifications are subject to change without prior noticey.
Metal flexible hoses should not be bent to radius smaller than recommended in their specifications, otherwise fatigue and premature failure will occur. Avoid twisting of metal flexible hoses. Please consult us for dynamic movement.
