SF7800

Feature

  • Prevention for damage of pipe and equipment by ground sinking,earthquake, etc.
  • Making pipe alignment.
  • Connection with machine and pipe.
  • Max. Working Temperature: 250 °C
  • One end fixed and the other loose flange high pressure type for more than 0.98 MPa (10kgf/cm²). Besides, it can be matched to high pressure inserting steel ring to the waist of tube.

Download

For a comprehensive overview of the product specifications mentioned above, feel free to download the product catalog here.

Applications

Connection of tank (oil, water, chemicals, etc). Connection of plant piping. Connection of water piping.

Category:

Dimensions and Allowable Movements

Nominal DiameterLength (L) (mm)Effective Cross Section Area (cm²)Ineffective Length (A + B) (mm)
mminch300mm400mm500mm
Eccentric (mm)
2512002978147145
321¼2501956111159
401½2501549101175
502350113574175
652½41093063175
80345062351195
100456041841195
125566041535195
150681531227200
200810151719220
250101220N/A616220
300121420N/A513220
350142700N/A26230
400163300N/A25230

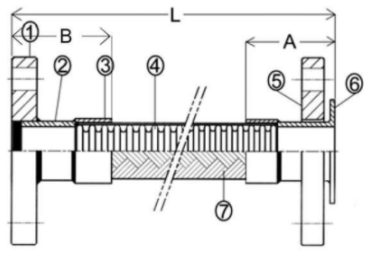

Materials

No.PartsMaterial
①Fixed FlangeSS400, SUS304
②Short PipeSS400, SUS304
③CollarSUS304
④Flexible TubeSUS304
⑤Loose FlangeSS400, SUS304
⑥Lap JointCS, SUS304
⑦Wire BraidSUS304

Note:
1. Metal flexible hoses should not be bent to radius smaller than recommended in their specifications, otherwise fatigue and premature failure will occur. Avoid twisting of metal flexible hoses.
2. Design and specifications are subject to change without prior
notice.
