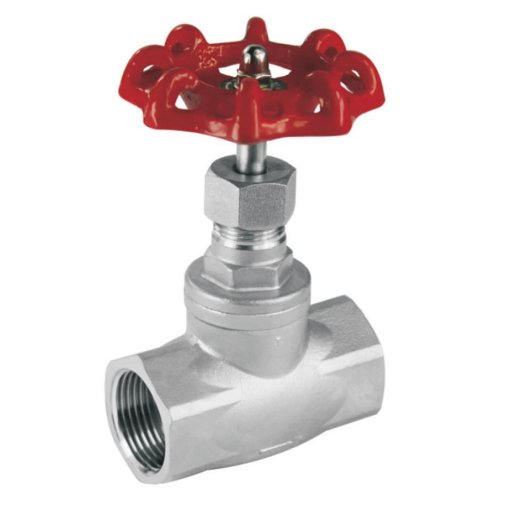

STAINLESS STEEL GLOBE VALVE

Specification

  • Bonnet: Screwed-in bonnet

  • Disc: Swivel disc

  • Stem: Rising stem

  • Asbestos: Asbestos-free

  • Thread Standard: Threaded to BS21 (ISO7) / ASME B1.20.1

  • Size Range: 15 mm (1/2″) – 50 mm (2″)

Download

For a comprehensive overview of the product specifications mentioned above, feel free to download the product catalog here.

Category:

Specification

PRESSURE / TEMPERATURE RATINGS

  • Working Pressure: 16 bar (200 PSI)
  • Testing Pressure:
    • Shell (Body): 24 bar Hydrostatic
    • Seat: 17.6 bar Hydrostatic / 5.5 bar Pneumatic
  • Working Temperature: -29 °C to 150 °C
  • Suitable Media: Water & Oil

MATERIALS LIST

Part NameMaterial
BodyStainless Steel CF8 / CF8M
BonnetStainless Steel CF8 / CF8M
DiscStainless Steel 304 / 316
StemStainless Steel 304 / 316
PackingPTFE
Seal RingPTFE
Cap NutStainless Steel 304
HandwheelDuctile Iron

DIMENSIONS

Size (mm)Size (inch)L (mm)H (Open) (mm)W (mm)
151/2″6794.570
203/4″7910070
251″8711780
321-1/4″10313680
401-1/2″118147100
502″138170100

Notes:

  1. If used for gas applications, please consult our sales office.
  2. Design and specifications are subject to change without prior notice.

TOZEN Corporation
8-4, Asahi, Yoshikawa, Saitama, 342-0008 Japan

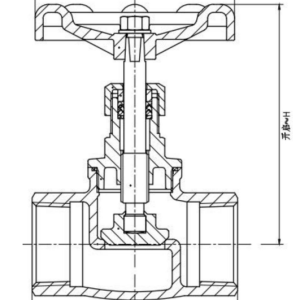

Drawing
