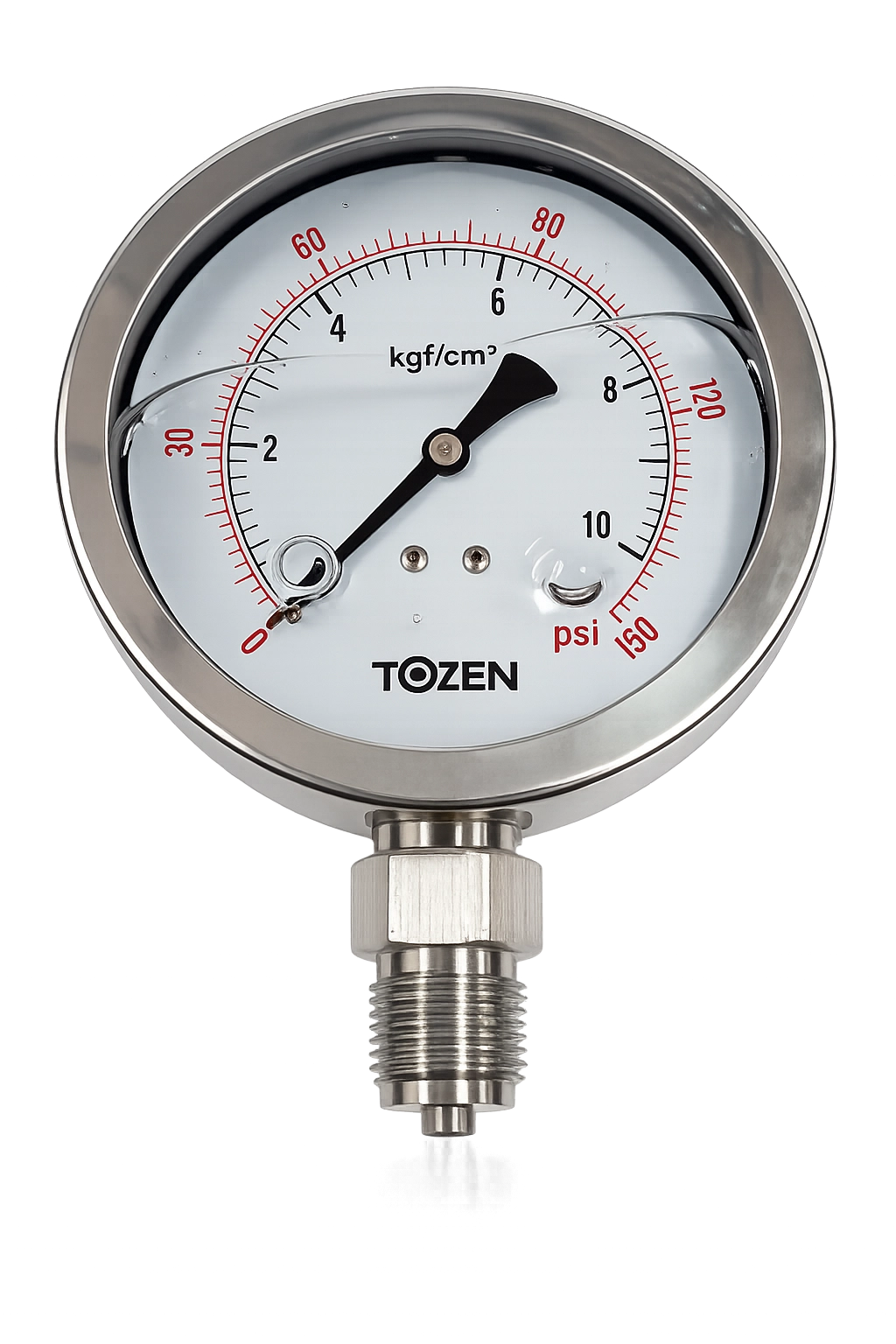

Specification
| Nominal Diameter | 2½", 4" |
| Dial | White aluminium with black & red markings |
| Case | Stainless Steel 304 / 316 |
| Lens | Polycarbonate |
| Pointer | Aluminium, Painted Black |
| Socket | Brass, Stainless Steel 304 |
| Connection | ¼" (2½" Dial), ½" (4" Dial Brass Socket). ½"(4" Dial Stainless Steel Socket) BSP Bottom Entry |
| Movement | Brass, Stainless Steel 304 |
| Operating Pressure | 75% of Full Scale Value |
| Ambient Temperature | -10°C to 60°C |
| Protection | IP 65 |
Product Code
| Range | Product Code |
|---|---|
| -760mm/Hg ~ 4kgf/cm² / psi | SPC4CA |
| 0 ~ 7kgf/cm² / psi | SP07CA |
| 0 ~ 10kgf/cm² / psi | SP010CA |
| 0 ~ 16kgf/cm² / psi | SP016CA |
| 0 ~ 20kgf/cm² / psi | SP020CA |
| 0 ~ 30kgf/cm² / psi | SP030CA |
