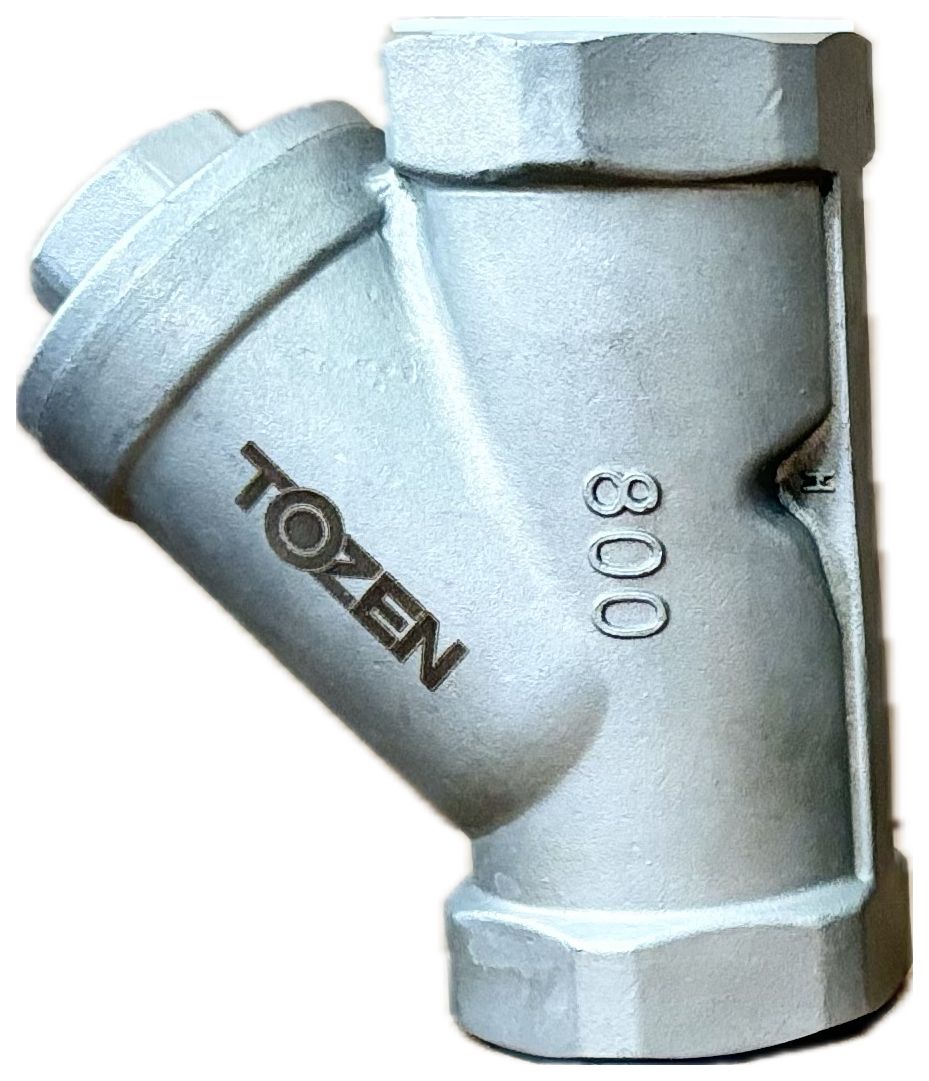

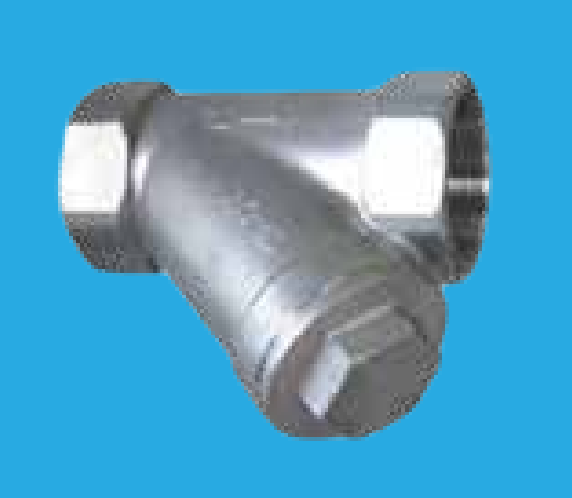

STAINLESS STEEL Y TYPE STRAINER (SYS)

Specification

  • Y-PATTERN BODY
  • SCREWED CAP
  • STAINLESS STEEL SCREEN
  • ASBESTOS FREE
  • THREADED TO BS 21 (ISO 7)

Note :
Design and specifications are subject to change without prior notice.

Download

For a comprehensive overview of the product specifications mentioned above, feel free to download the product catalog here.

Specification

Material

PartMaterialEN
BodyStainless Steel 304304 S15
CoverStainless Steel 304304 S15
ScreenStainless Steel 304304 S15
GasketPTFE

Pressure / Temperature Ratings

Working Pressure16 bar
Testing Pressure24 bar Hydrostatic
Working Temperature-29ºC ~ 150ºC
Suitable MediaWater, Oil & Gas

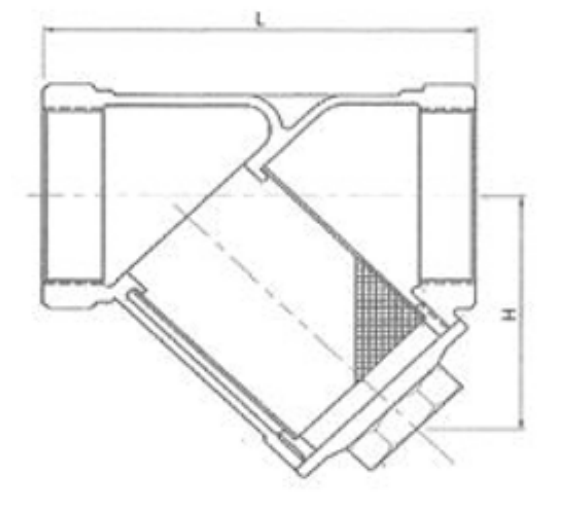

Drawing

Structure

Dimensions

Size (mm)Size (inch)L (mm)L (inch)H (mm)H (inch)
151/2622.4401.6
203/4742.9522.0
251813.2602.4
321 1/41034.1672.6
401 1/21064.2732.9
5021244.9883.5
