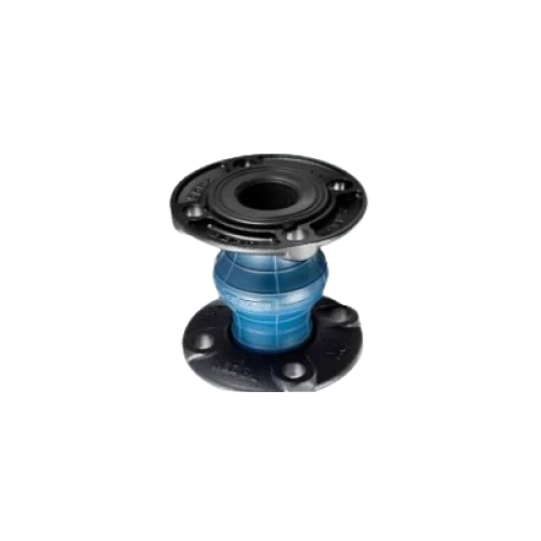

TOZENFLEX

Low Reaction Force
Superb vibration absorption effect with reduce load and stress on piping.
Unique Spherical Shaped Form
Slim arch shape avoids the contact of rubber body with bolt head.
Excellent Pressure Resistance

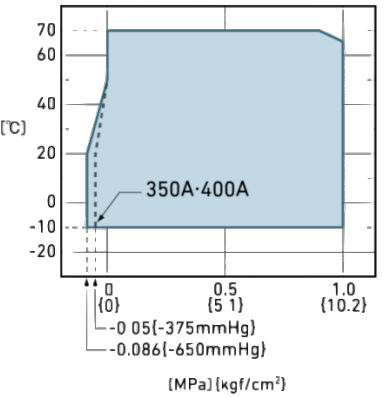

Spherical type rubber flexible joint has outstanding performance in pressure resistance.
Available for Slurry
Smooth interior surface (buried rubber type) is available upon request for sewage or fluid with particles tend to precipitate or accumulated.
Face-to-Face Dimension is standardized
Face-to-face dimension is identical for 32A-200A. It is convenient for design when compared with others different face-to-face dimension by size.

For a comprehensive overview of the product specifications mentioned above, feel free to download the product catalog here.

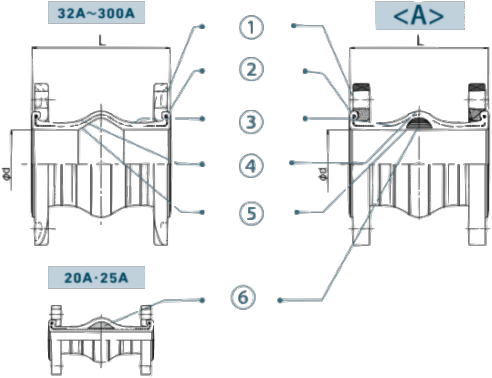

Nominal Diameter	Main Body Dimension (mm)		Mass (kg)	Allowable Displacement Amount (mm)
Nominal Diameter	L	Ød	Mass (kg)	Eccentricity	Stretching	Contraction	Deflection
20	140	25	0.8	10	5	10	15
25	140	25	1.2	10	5	10	15
32	150	40	1.5	20	10	20	15
40	150	40	1.6	20	10	20	15
50	150	50	2.0	20	10	20	15
65	150	65	2.6	20	10	20	15
80	150	75	2.8	20	10	20	15
100	150	100	3.5	20	10	20	15
125	150	125	5.1	20	8	15	15
150	150	150	8.8	20	8	15	15
200	150	200	9.5	20	8	15	15
250	200	250	16	25	15	20	15
300	200	300	20	25	15	20	15
350	200	350	30	25	15	20	15
400	200	400	42	25	15	20	15
