WAFER TYPE BUTTERFLY VALVES (BFV-W)

Specifications:

SUITABLE TO MULTI STANDARD
FACE-TO-FACE DIMENSION TO BS 5155 / BS EN 558-1 Sr.20
LEVER / WORM GEAR OPERATOR

Download

For a comprehensive overview of the product specifications mentioned above, feel free to download the product catalog here.

Category: Valves (Cast & Ductile Iron) Tags: BFV-W, BUTTERFLY, type, VALVES, wafer

Specification
Drawing

Specification

Pressure/Temperature Ratings

Working Pressure	16 bar
Testing Pressure	Shell : 24 bar (1.5 times) Seat : 17.6 bar (1.1 times)
Working Temperature	-20°C to 110°C (EPDM Seat) -10°C to 80°C (NBR Seat)
Suitable Media	Water & Oil

Materials

Part	Material	BS EN*
Body	Cast Iron Ductile Iron	1561 GJL-250 1563 GJS-450-10
Disc	Ductile Iron	1563 GJS-450-10
	Aluminium Bronze	1982 CC333G
	Stainless Steel 304	10283 GX5CrNi19-10
	Stainless Steel 316	10283 GX5CrNiMo19-11-2
Seat Ring	EPDM
Seat Ring	NBR
Shaft	Stainless Steel 410	10088-3 X12Cr13
	Stainless Steel 431	10088-3 X17CrNi16-2
O-Ring	NBR
Bushing	Resin

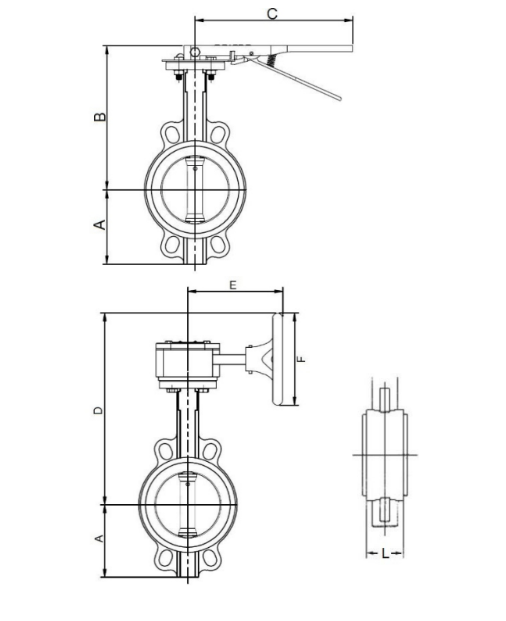

Drawing

Dimensions

Size mm	L mm	A mm	B mm	C mm	D mm	E mm	F mm
50	43	66	183	215	270	150	145
65	46	78	193	215	280	150	145
80	46	99	201	215	288	150	145
100	52	115	226	235	310	150	145
125	56	131	242	260	323	150	145
150	56	145	257	260	338	150	145
200	60	173	301	355	450	210	280
250	68	210	342	355	491	210	280
300	78	242	387	355	536	200	280
350	78	270	–	–	561	200	280

Size mm	L mm	A mm	D mm	E mm	F mm
400	102	307	680	243	280
450	114	336	706	243	280
500	127	373	747	243	280
600	154	429	885	296	385
650	165	468	880	296	385
700	165	523	1016	336	420
750	190	546	1032	336	420
800	190	581	1057	336	420
900	203	638	1108	357	420
1000	216	705	1196	357	420
1100	254	780	1285	450	420
1200	254	846	1397	450	420
