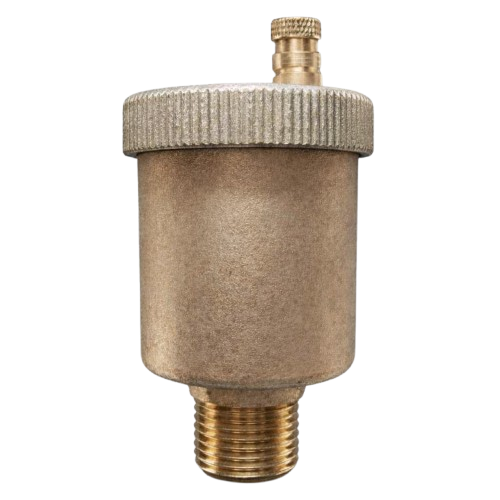

BRASS AUTO AIR VENT (BAAV)

Spesification

• THREADED TO BS 21 (ISO7) /ASME B1.20.1 OR NPT

Download

For a comprehensive overview of the product specifications mentioned above, feel free to download the product catalog here.

Category: Tags: , , , ,

Spesification

Material

PartMaterialEN
BodyBrass12165 CW617N
CapBrass12165 CW617N
Air CapBrass12165 CW617N
FloatPlastic
Float BarStainless Steel 304304 S15
SpringStainless Steel 304304 S15
PackingEPDM
O-RingEPDM

Pressure / Temperature Ratings

Working Pressure16 bar
Testing Pressure24 bar Hydrostatic
Suitable MediaWater

Drawing

Dimensions

SizeLH
mminchmminchmminch
15½461.8823.2
20¾461.8823.2
251461.8823.2

Structure

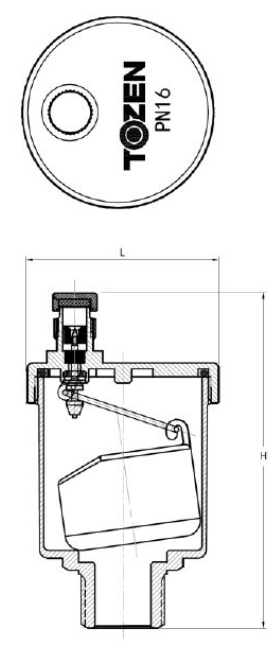

Valve Structure Diagram
