CAST IRON RISING STEM GATE VALVE (R-CGV-B)

Specification

RISING STEM • OUTSIDE SCREW AND YOKE BS 5150 • FLANGED TO PN16

Note:

  • 1. Other flange standards available upon request.
  • 2. Design and specifications are subject to change without prior notice.

Download

For a comprehensive overview of the product specifications mentioned above, feel free to download the product catalog here.



<
Category: Tags: , , , , , , , ,

Materials

Part Material BS
Body Cast Iron (DN40~DN125)
Ductile Iron (DN40~DN300)		 1452 Gr. 220
2789 Gr. 420/12
Bonnet Cast Iron 1452 Gr. 220
Disc Cast Iron 1452 Gr. 220
Stem Stainless Steel 420 970 304S15
Packing Graphite Non-Asbestos
Handwheel Cast Iron 1452 Gr. 220

Pressure/Temperature Ratings

Working Pressure 16 bar
Testing Pressure Shell: 24 bar
Seat: 17.6 bar
Working Temperature -10°C to 150°C
Suitable Media Water & Oil

Structure

Structure Image

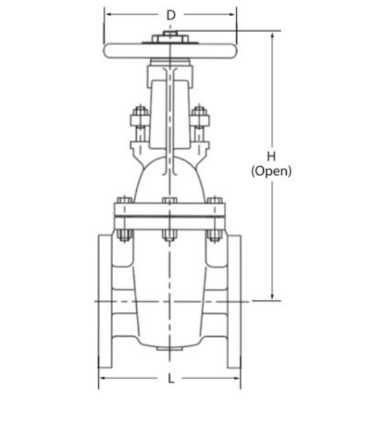

Dimensions

Size mm L mm H mm D mm
40 165 305 160
50 178 325 160
65 190 367 160
80 203 441 200
100 229 513 200
125 267 603 250
150 267 720 250
200 292 923 300
250 330 1116 350
300 356 1345 350
350 381 1560 475
400 406 1740 475
