INDUSTRIAL THERMOMETER – IT SERIES

Description

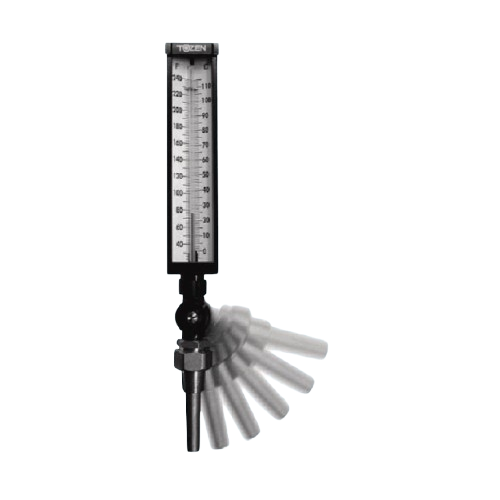

TOZEN IT series adjustable angle industrial thermometer is widely used in HVAC and other industrial applications. It is fully adjustable to provide full 360° positioning on the vertical axis and 180° rotation on the horizontal axis. The thermometer can be “locked” into any position within this arc.

Download

For a comprehensive overview of the product specifications mentioned above, feel free to download the product catalog here.

Application

New construction, plumbing, water lines, boilers, heating, ventilation and air conditioning

Category: Tags: , , , , , ,

Specification

Scale Casing 9” (230mm) Valox® case, Impact Resistant
Lens Glass
Liquid Filling Organic Liquid Fill

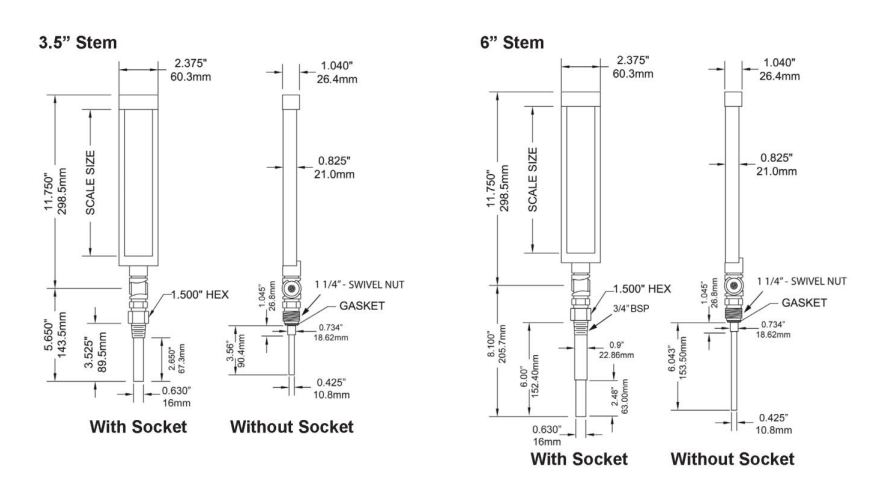

Stem Length 3½" (90mm) & 6" (150mm)
Thermowell ¾” Brass Separable Socket (SS optional)
Scale Reading Celsius (°C) & Fahrenheit (°F)
Connection ¾” BSP With Thermowell
1¼” UNF Swivel Nut (No Thermowell)
Accuracy ±1%
Protection IP 54



PRODUCT CODE

Range Stem Length
3½” (90mm) 6” (150mm)
-40ºC ~ 40ºC / -40ºF ~ 110ºF IT4/01V IT6/01V
-15ºC ~ 50ºC / 0ºF ~ 120ºF IT4/02V IT6/02V
-15ºC ~ 70ºC / 0ºF ~ 160ºF IT4/03V IT6/03V
0ºC ~ 80ºC / 30ºF ~ 180ºF IT4/04V IT6/04V
0ºC ~ 115ºC / 30ºF ~ 240ºF IT4/05V IT6/05V
0ºC ~ 150ºC / 30ºF ~ 300ºF IT4/06V IT6/06V
