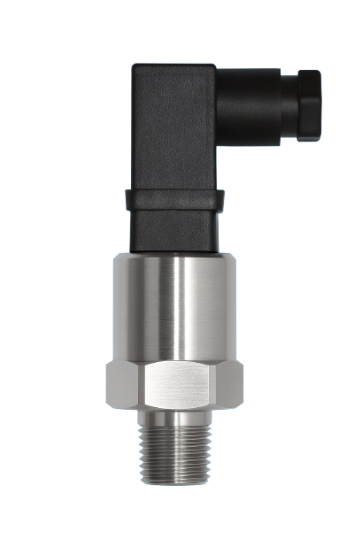

PRESSURE TRANSMITTER

Specification

Parameter	Specification
Output Signal Standard	2-wire: 4–20 mA / Vs = 12–30 Vdc Optional 3-wire: 0.5–4.5 Vdc / Vs = 10–30 Vdc / Vac
Accuracy	±0.5% FSO (±1% FSO for pressures ≤ 45 psi (3 bar))
Response Time	< 10 ms
Insulation	> 100 MΩ @ 50V
Permissible Temperatures	Operating: −40°F to 212°F (−40°C to 100°C) Compensating: 14°F to 176°F (−10°C to 80°C)
Pressure Port / Housing	304 SS
Wetted Parts	Seals: NBR Diaphragm: Ceramic
Current Consumption	2-wire: 25 mA max 3-wire voltage: 5 mA (short-circuit current 20 mA)
EMC	EMI: EN50081-1/-2 EMS: EN50082-2
Stability	Vibration: 10 g / 5 Hz to 200 Hz Shock: 20 g / 11 ms
Operation Life	2 M cycles
Approval	CE

Range	Over-pressure	Burst pressure	Code
30"/0/60 psi	75 psi	150 psi	LE10060
30"/0/100 psi	150 psi	300 psi	LE10100
30"/0/150 psi	225 psi	450 psi	LE10150
0/15 psi	23 psi	45 psi	LE115
0/25 psi	38 psi	75 psi	LE125
0/50 psi	75 psi	150 psi	LE150
0/60 psi	90 psi	180 psi	LE160
0/100 psi	150 psi	300 psi	LE1100
0/150 psi	225 psi	450 psi	LE1150
0/200 psi	300 psi	600 psi	LE1200
0/300 psi	450 psi	900 psi	LE1300
0/500 psi	750 psi	1,500 psi	LE1500
0/1,000 psi	1,500 psi	3,000 psi	LE11000
0/2,000 psi	3,000 psi	6,000 psi	LE12000
-1/4 bar	6 bar	12 bar	LE10060R11
-1/6 bar	9 bar	18 bar	LE10100R11
-1/10 bar	15 bar	30 bar	LE10150R11
0/10 bar	2 bar	3 bar	LE115R11
0/1.6 bar	2 bar	5 bar	LE125R11
0/2.5 bar	4 bar	8 bar	LE150R11
0/4 bar	6 bar	12 bar	LE160R11
0/6 bar	9 bar	18 bar	LE1100R11
0/10 bar	15 bar	30 bar	LE1150R11
0/16 bar	24 bar	48 bar	LE1200R11
0/25 bar	38 bar	75 bar	LE1300R11
0/40 bar	60 bar	120 bar	LE1500R11
0/60 bar	90 bar	180 bar	LE11000R11
0/100 bar	150 bar	300 bar	LE12000R11
0/160 bar	240 bar	480 bar	LE13000R11

Connector Type	Pin / Colour	2-wire (current)	3-wire (voltage)	Description
Micro	Pin 1	Vcc	Vcc	Power supply
	Pin 2	Iout	Ground	Output / Ground
	Pin 3	No Connection	Vout	Signal output
	Pin 4	Shield	Shield	Shield
Packard	Pin A	No Connection	Ground	Ground (3-wire)
	Pin B	Vcc	Vcc	Power supply
	Pin C	Iout	Vout	Signal output
Cable Leads	Red	Vcc	Vcc	Power supply
	Green / Blue	Iout	Ground	Output / Ground
	Black	No Connection	Vout	Signal output
	Yellow	Shield	Shield	Shield
M12	Pin 1	Supply +	Supply +	Power supply positive
	Pin 2	Supply −	Supply −	Power supply negative
	Pin 3	No Connection	Signal +	Signal (3-wire)
	Pin 4	Shield	Shield	Shield
