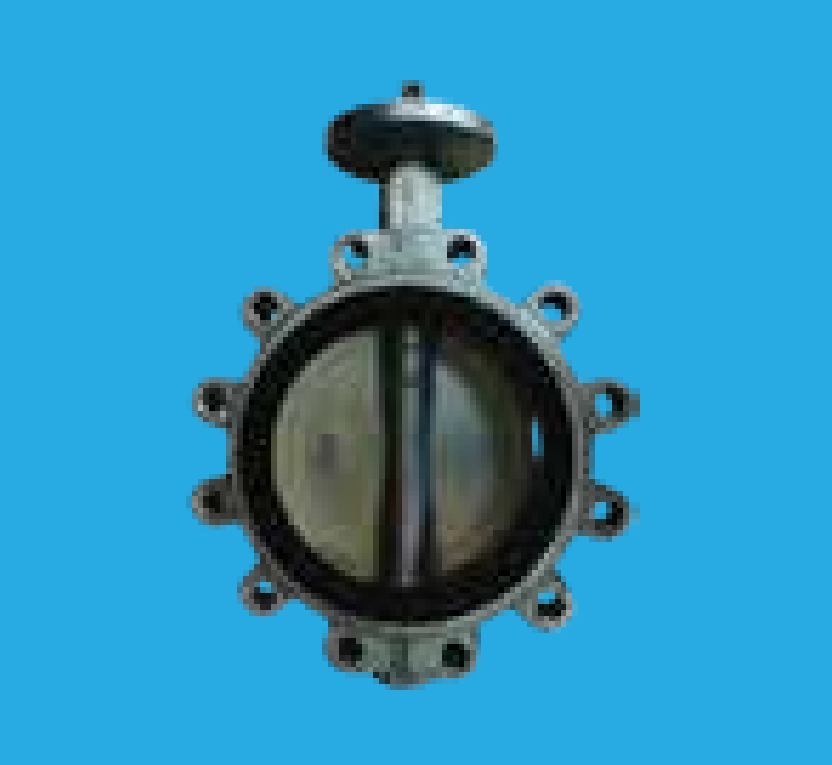

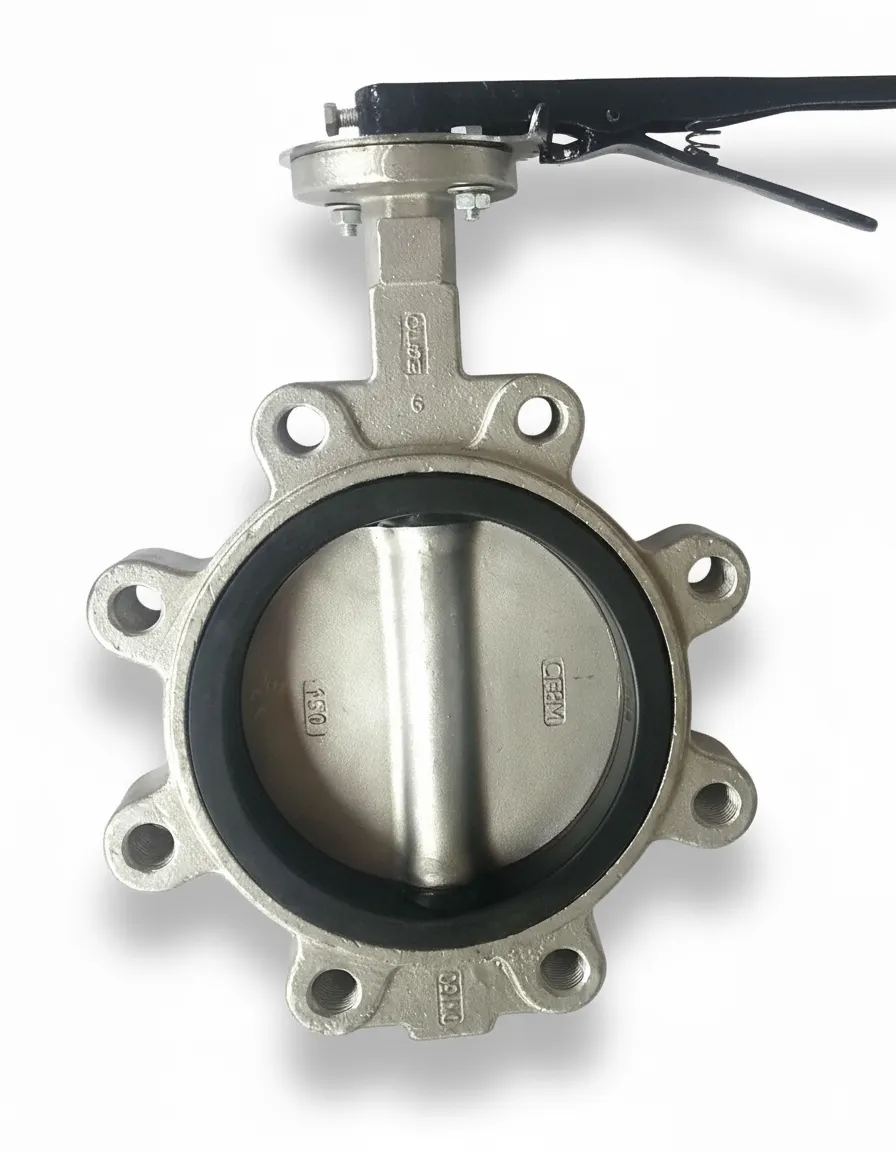

SBFV-LA

Specification

  • FOR ANSI CLASS B16.1 FLANGE MOUNTING
  • FACE-TO-FACE DIMENSION TO ISO 5752 / BS 5155 / BS EN 593
  • DOUBLE-STAGE WORM GEAR OPERATOR
  • LEVEL / WORM GEAR OPERATOR

Note :
Design and specifications are subject to change without prior notice.

Download

For a comprehensive overview of the product specifications mentioned above, feel free to download the product catalog here: SBFV-LA-1 and SBFV-LA-2.

Category: Tag:

Material

Part Material ASTM*
Body Stainless Steel 304
Stainless Steel 316 		A351 CF8
A351 CF8M
Disc Stainless Steel 304
Stainless Steel 316 		A351 CF8
A351 CF8M
Seat Ring EPDM
NBR
PTFE
VITON
Shaft Stainless Steel 420
Stainless Steel 431 		A276-420
A276-431
O-Ring NBR
Bushing Resin

*: Indicates the corresponding equivalent standard material for ASTM.

Pressure / Temperature Ratings

Working Pressure 200 psi
Testing Pressure Shell: 1.5 times
Seat: 1.1 times
Working Temperature -4℉ to 230℉ (EPDM Seat)
14℉ to 176℉ (NBR Seat)
41℉ to 248℉ (PTFE Seat)
14℉ to 275℉ (VITON Seat)
Suitable Media Water & Oil

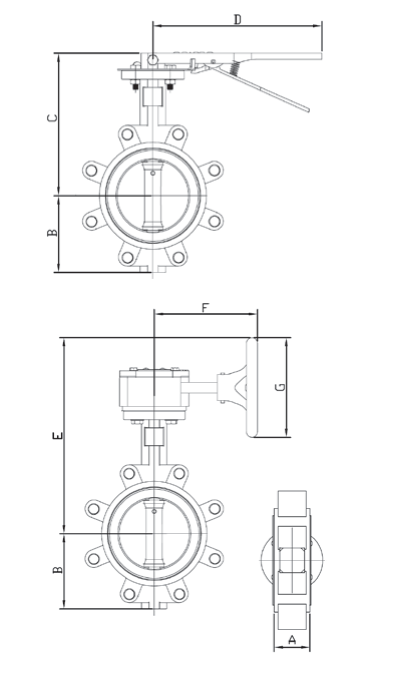

Dimensions

No Komponen Spesifikasi
1 Display 7” TFT LCD, 800 x 480 pixel
2 Touch Panel Capacitive Touch Panel
3 Microcontroller ESP32-WROVER, dual core, 16MB flash
4 Speaker Mini speaker 8Ω 0.5W
5 Sensor Sidik Jari Capacitive fingerprint scanner,
FRR < 0.01%, FAR < 0.0001%, waktu respon < 0.5s
6 Kamera OV5640 5MP autofocus camera
7 NFC PN532 RFID/NFC Module, 13.56 MHz, ISO/IEC 14443 Type A & B
8 RTC Real Time Clock DS3231
9 Relay 2 channel relay 5V
10 Temperature DS18B20 waterproof digital temperature sensor
11 Power Supply Adaptor 5V 3A
12 Case Laser cut acrylic, 3D printed ABS/PLA
13 Software Arduino IDE, PlatformIO, MicroPython (opsional)
14 Konektivitas WiFi 802.11 b/g/n, Bluetooth 4.2
