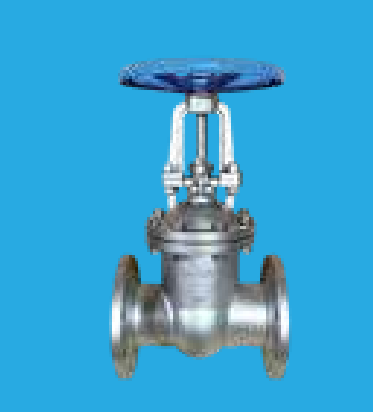

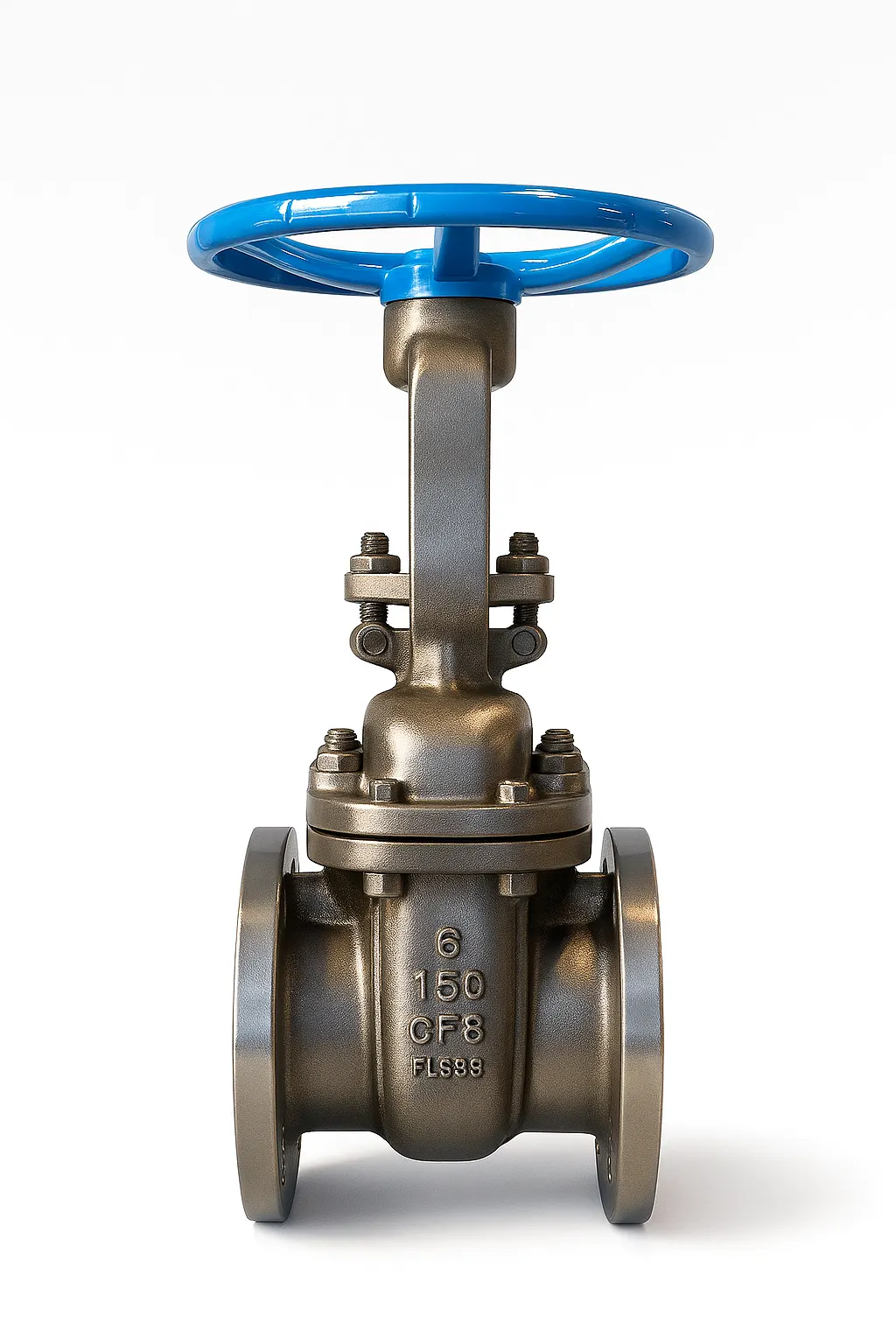

STAINLESS GATE VALVE (SGV-B)

Specification

  • NON-RISING STEM
  • FLANGED TO BS4504 PN16

Download

For a comprehensive overview of the product specifications mentioned above, feel free to download the product catalog here.

Category: Tags: , , , ,

Specification

Material

PartMaterial
BodyStainless steel 304
BonnetStainless steel 304
DiscStainless steel 304
StemStainless steel 304
PackingGraphite
Stem NutAluminium Bronze
HandwheelDuctile Iron

Pressure / Temperature Ratings

Working Pressure16 bar
Testing PressureShell: 24 bar Hydrostatic, Seat: 17.6 bar Hydrostatic
Working Temperature-29ºC ~ 150ºC
Suitable MediaWater & Oil

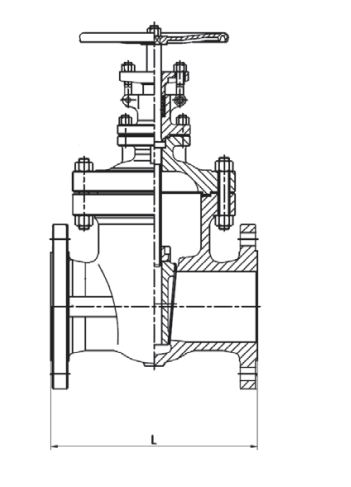

Drawing

Structure

Dimensions

Size (mm)L (mm)
50250
65270
80280
100300
125325
150350
200400
250450
300500
