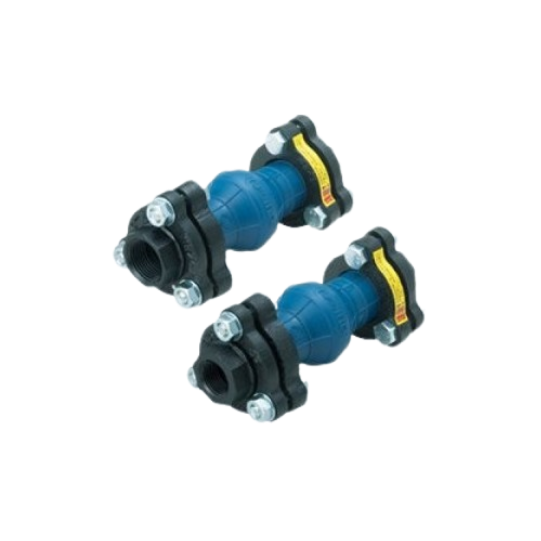

TOZENFLEX S

Preventing Torsional Deformation
Won’t make the frequest damage of union joint caused by twist of the main unit when the device is attached
Compact Design
Easy construction with small space by the combination of compact triangular flange and loose type socket

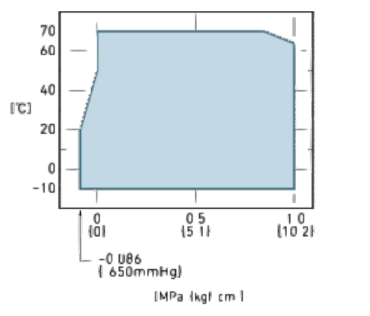

For a comprehensive overview of the product specifications mentioned above, feel free to download the product catalog here.

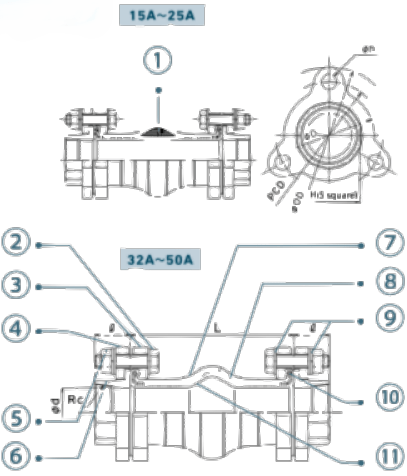

Nominal Diameter	Main Body Dimension (mm)		Socket Dimension (mm)			Flange Dimension				Mass (kg)	Allowable Displacement Amount (mm)
Nominal Diameter	L	Ød	ℓ	Rc	H (S Square)	ΦD	PCD	Φh	ΦOD	Mass (kg)	Eccentricity	Stretching	Contraction	Deflection
15	140	25	30	½	41 (Octagonal)	68	70	11.0	93	1.6	10	5	10	15
20	140	25	30	¾	41 (Octagonal)	68	70	11.0	93	1.7	10	5	10	15
25	140	25	30	1	41 (Octagonal)	68	70	11.0	93	1.9	10	5	10	15
32	150	40	35	1¼	50 (Decagon)	90	95	13.5	121	2.9	20	10	10	15
40	150	40	35	1½	56 (Decagon)	90	95	13.5	121	3.0	20	10	20	15
50	150	50	40	2	69 (Decagon)	106	110	13.5	135	5.3	20	10	20	15
