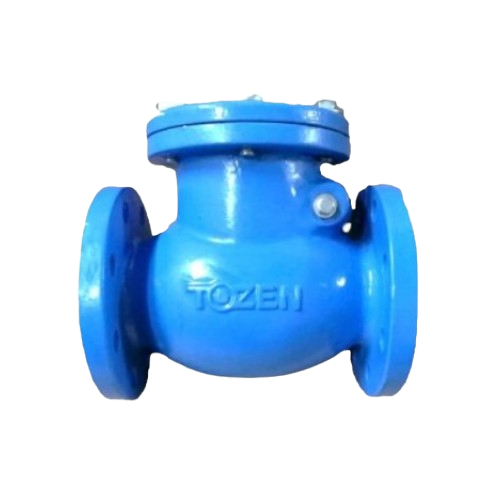

CAST IRON SWING CHECK VALVE (CCV-D)

Specification

BRASS SEAT

FLANGED TO EN 1092–2 PN16

FACE-TO-FACE DIMENSION CONFORMS TO DIN3202-F6



Download

For a comprehensive overview of the product specifications mentioned above, feel free to download the product catalog here.



Category: Tags: , , , , , , ,

Material

Part Material BS
Body Cast Iron
Ductile Iron		 1691 GG25
1693 GGG50
Disc Ductile Iron 1693 GGG50
Cover Cast Iron
Ductile Iron		 1691 GG25
1693 GGG50
Seat Ring Brass 17660 CuZn39Pb3
Disc Ring Brass 17660 CuZn39Pb3

Pressure / Temperature Ratings

Working Pressure 16 bar
Testing Pressure Shell: 24 bar
Seat: 17.6 bar
Working Temperature -10°C to 120°C
Suitable Media Water & Oil

Structure

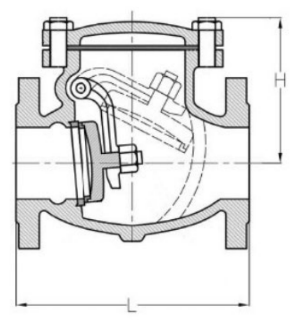

Structure Image

Dimension

Size (mm) L (mm) H (mm)
50 200 127
65 240 151
80 260 165
100 300 178
125 350 205
150 400 221
200 500 249
250 600 306
300 700 330
