Note :
Design and specifications are subject to change without prior notice.
For a comprehensive overview of the product specifications mentioned above, feel free to download the product catalog here.
| Part | Material |
|---|---|
| Body | Stainless Steel 304 |
| Bonnet | Stainless Steel 304 |
| Ball | Stainless Steel 304 |
| Seat | Resin |
| Shaft | Stainless Steel 304 |
| Lever / Wormgear | Carbon Steel |
| Working Pressure | 16 bar |
| Testing Pressure | Shell: 24 bar, Seat: 17.6 bar |
| Working Temperature | Max. 150 ºC |
| Suitable Media | Water & Oil |

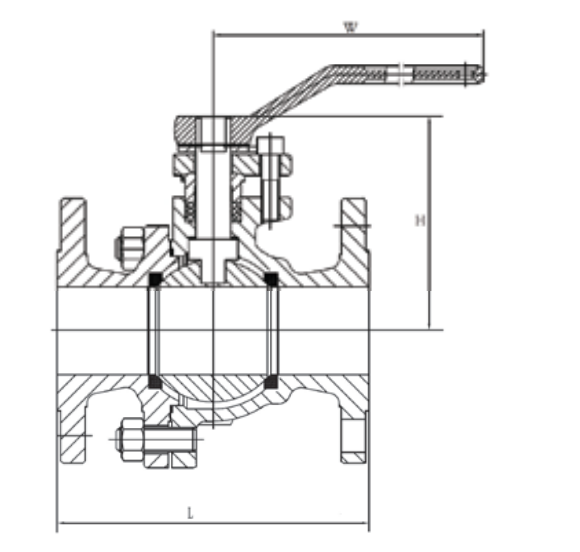

| Size (mm) | L (mm) | H (mm) | W (mm) |
|---|---|---|---|
| 15 | 130 | 85 | 121 |
| 20 | 140 | 88 | 121 |
| 25 | 150 | 100 | 152 |
| 32 | 165 | 105 | 152 |
| 40 | 180 | 130 | 231 |
| 50 | 200 | 137 | 231 |
| 65 | 220 | 157 | 231 |
| 80 | 250 | 183 | 283 |
| 100 | 280 | 205 | 283 |
| 125 | 320 | 270 | 550 |
| 150 | 360 | 294 | 635 |
| 200 | 400 | 400 | - |
