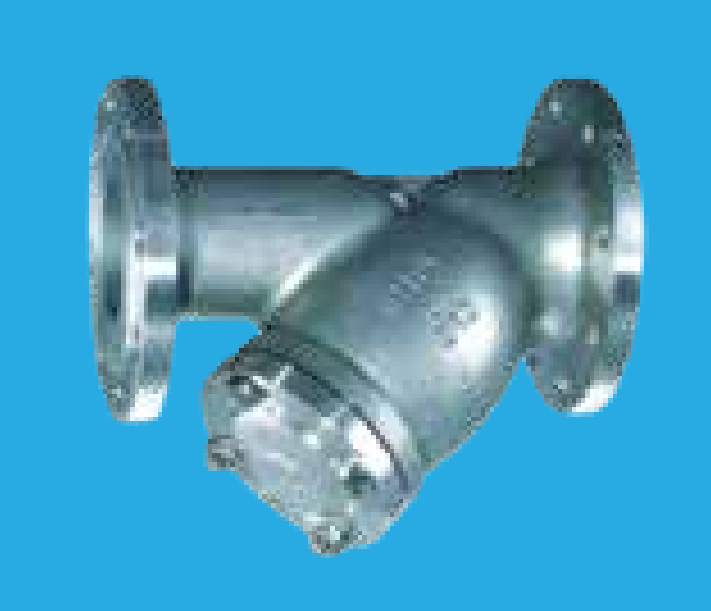

STAINLESS STEEL Y TYPE TRAINER (SYS-B)

Specification

  • BOLTED COVER
  • STAINLESS STEEL PERFORATED SCREEN
  • FLANGED TO BS4504 PN16

Download

For a comprehensive overview of the product specifications mentioned above, feel free to download the product catalog here.

Category: Tags: , , , ,

Specification

Material

PartMaterial
BodyStainless Steel 304
CoverStainless Steel 304
ScreenStainless Steel 304
GasketResin
Drain PlugStainless Steel 304

Pressure / Temperature Ratings

Working Pressure16 bar
Testing Pressure24 bar Hydrostatic
Working TemperatureMax. 120 ºC
Suitable MediaWater & Oil

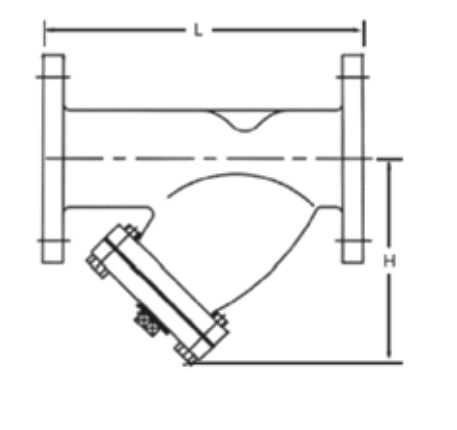

Drawing

Structure

Dimensions

Size (mm)Size (inch)L (mm)L (inch)H (mm)H (inch)
5022208.71305.1
652½2509.81305.1
80328011.01656.5
100432012.61957.7
125535013.82309.1
150638015.030011.8
200847018.533513.2
2501057022.437014.6
3001262024.444017.3
