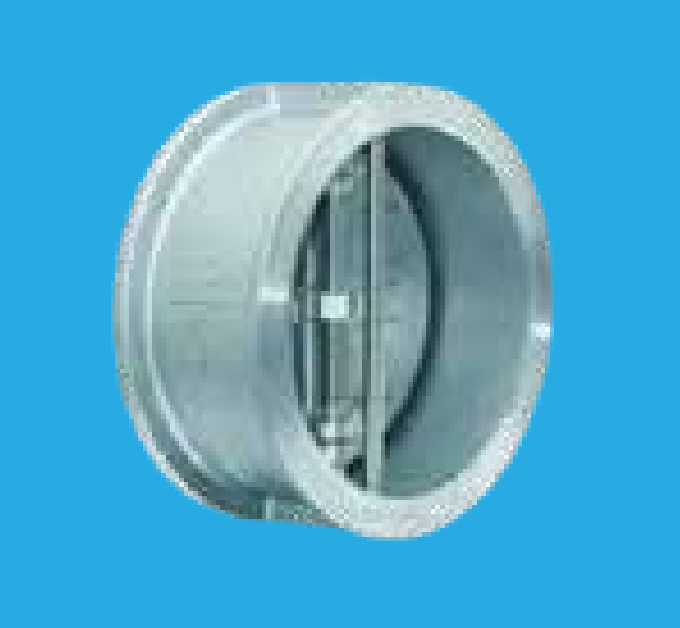

SDCV-W

Specification

  • SUITABLE PN10/PN16, JIS10K & ANSI150 FLANGE MOUNTING

Note :
Design and specifications are subject to change without prior notice.

Download

For a comprehensive overview of the product specifications mentioned above, feel free to download the product catalog here.

Category: Tag:

Material

Part Material BS
Body Stainless Steel 304
Stainless Steel 316		 304 C15
316 C16
Disc Stainless Steel 304
Stainless Steel 316		 304 C15
316 C16
Seat Ring EPDM
NBR
Stem Stainless Steel 316 316 C16
Spring Stainless Steel 316 316 C16
Bush TEFLON

Pressure / Temperature Ratings

Working Pressure 16 bar
Testing Pressure Shell: 1.5 times
Seat: 1.1 times
Working Temperature -10ºC to 120ºC (EPDM Seat)
-10ºC to 80ºC (NBR Seat)
Suitable Media Water & Oil

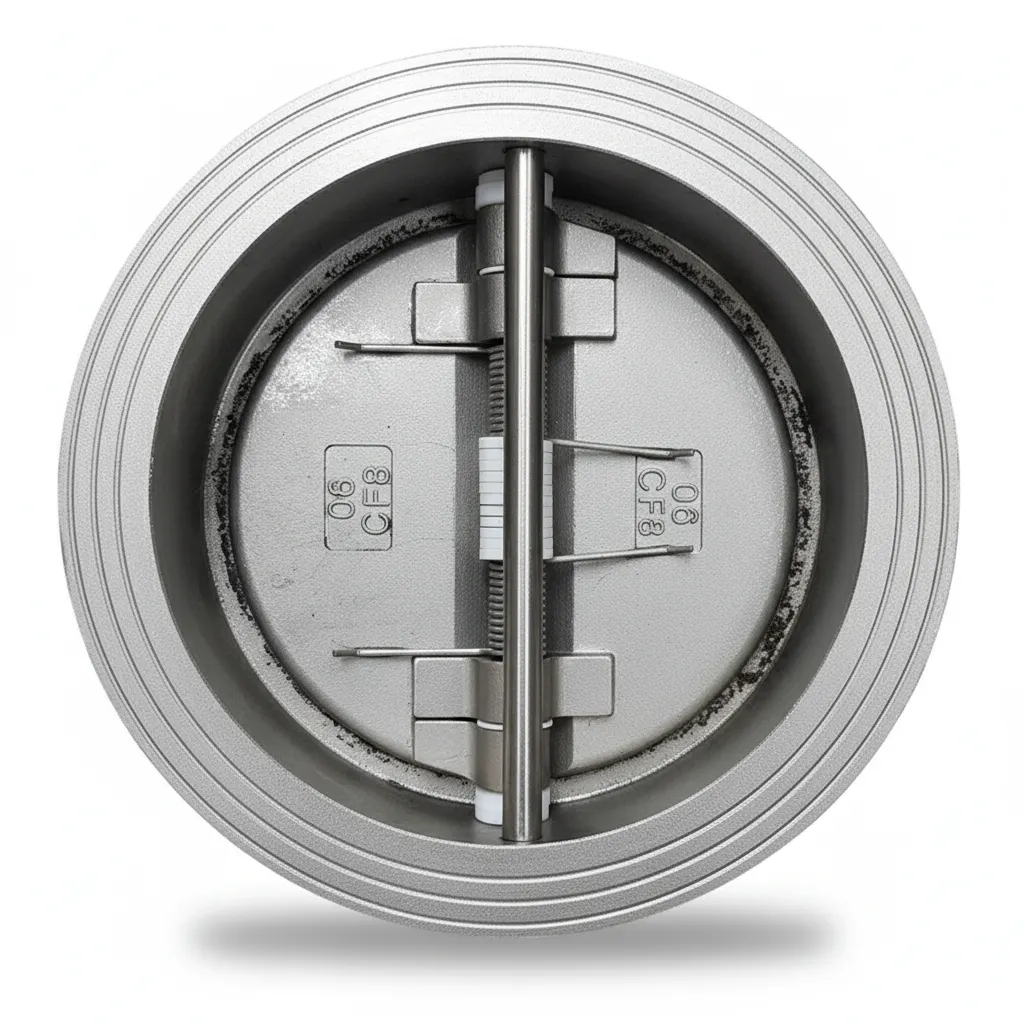

Structure

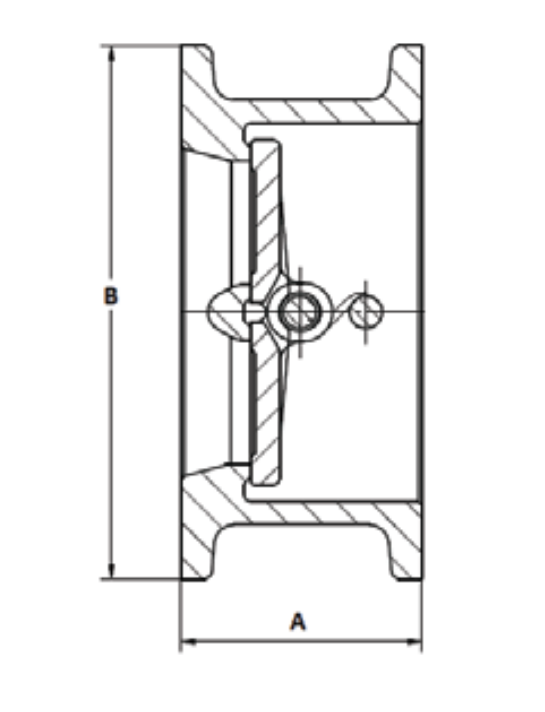

Dimensions

Size (mm) A (mm) B (mm)
50 43 101
65 46 121
80 64 131
100 64 156
125 70 187
150 76 217
200 89 267
250 114 329
300 114 375
