SGV-A

Specification

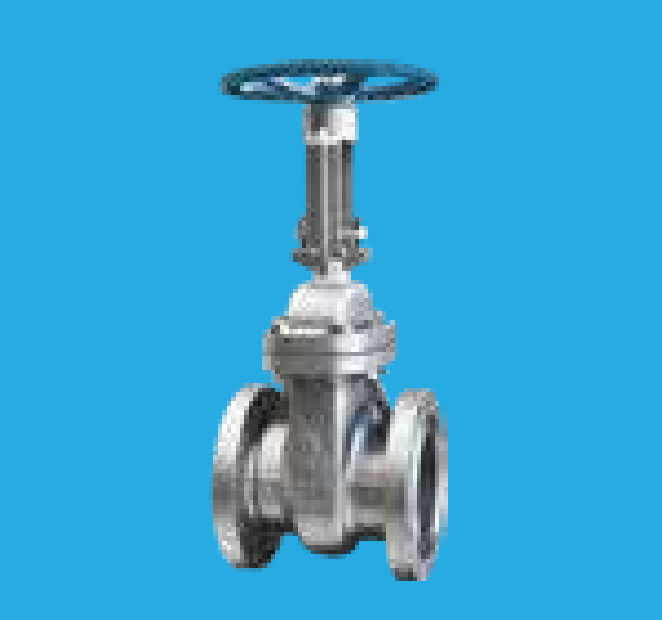

  • ANSI FLANGE RISING-STEM GATE VALVE

Download

For a comprehensive overview of the product specifications mentioned above, feel free to download the product catalog here.

Category: Tag:

Material

No Part Material
1 Round nut 1025
2 Nameplates Al
3 Handwheel KTH330
4 Bearing gland 1025
5 Bearing GCr15
6 Stem nut QT400/Brass
7 Stand WCB CF8/CF8M
8 Nut 2H 304
9 Stud B7 304
10 Packing Graphite PTFE
11 Bonnet WCB CF8/CF8M
12 Stem F6a 304/316
13 Nut 2H 304
14 Gasket 304+Graphite PTFE
15 Stud B7 304
16 Body WCB CF8/CF8M
17 Disc WCB CF8/CF8M
18 Oil Cup CU
19 Nut 2H 304
20 Washer 1020 304
21 Gland WCB CF8
22 Screw B7 304

Applicable Standard

Standard Reference
Design Rating API 600, API 603, ASME B16.34
Face-to-Face ASME B16.10
Flanged Ends ASME B16.5
Inspection and Testing API 598
Suitable Media Water

Note: 1. Design and specifications are subject to change without prior notice.

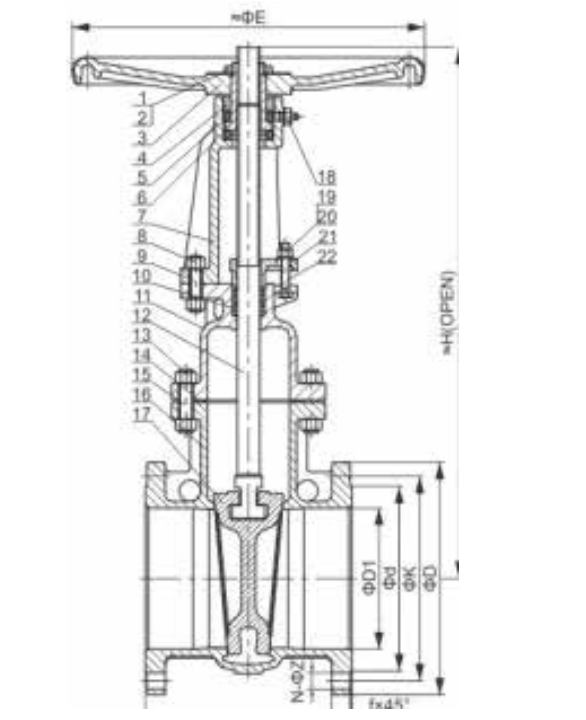

Structure

Dimensions

Size (inch) (mm) D1 (mm) D (mm) K (mm) D (mm) F (mm) N-ΦZ L (mm) E (mm) H (mm)
1-1/2 (40) 73.0 98.4 125 14.7 4-16 165 180 315
2 (50) 92.1 120.7 150 16.3 4-19 180 195 360
2-1/2 (65) 104.8 139.7 170 17.9 4-19 190 220 425
3 (80) 127 152.4 190 19.5 4-19 200 240 460
4 (100) 157.2 190.5 220 22.4 8-19 220 260 550
5 (125) 185.7 215.9 255 24.3 8-19 250 280 660
6 (150) 210.3 241.3 285 25.9 8-22 270 320 755
8 (200) 266.9 298.5 345 29.0 8-22 300 380 900
10 (250) 323.8 364 400 32.2 12-25 350 450 1170
12 (300) 381.0 431.8 485 35.2 12-25 356 450 1410
14 (350) 412.8 476.3 535 35.4 12-32 400 510 1560
16 (400) 469.9 539.8 600 38.1 20-32 432 550 1765
18 (450) 533.4 607.2 635 40.1 20-32 457 600 1900
20 (500) 584.2 635 700 43.3 20-32 457 700 2100
